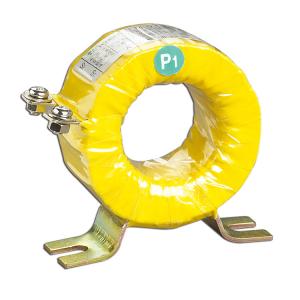

Indoor LM-0.5 Ring Type Current Transformer , 600/5A Power Miniature Current Transformer

Product Categories
YUEQING YOMIN ELECTRIC CO., LTD
Contact Now

Indoor LM-0.5 Ring Type Current Transformer , 600/5A Power Miniature Current Transformer

  • 1
  • 2
  • 3

Brand Name : YOMIN

Model Number : LM- 0.5

Certification : IEC60044-1,GB1208-2006

Place of Origin : Made in China

MOQ : 1 piece

Price : USD 18.37-28.42 piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 176000 PCS/Month

Delivery Time : Within one week after payment.

Packaging Details : Standard export packing

Rated Voltage : 500V

Rated frequency : 50 or 60 HZ

Color : Yellow

Altitude : ≤1000m

Ambient temperature : -5ºC~+40ºC

Material : PC

Model : LM-0.5

Brand : YOMIN

Certificate : IEC60044-1

Use : Measuring instrument

Country of origin : China

Packing : Standard export packing

Delivery date : Within one week after payment.

Usage : Current

Phase : Single phase

Coil Structure : Toroidal

Coil Number : Autotransformer

Installation : Active Type

Contact Now

Indoor LM-0.5 Ring Type Current Transformer , 600/5A Power Miniature Current Transformer

Description:

  • Model NO.: LM-0.5
  • Type: Current Transformer
  • Operation Condition: Indoor
  • Insulating Medium: Insulating Paper
  • Magnetic Circuit Structure: Cascade Type
  • Rated Voltage: 500V
  • Rated Frequency: 50Hz
  • Customized Design: Yes
  • Transport Package: 16 PCS/Carton
  • Origin: Wenzhou Zhejiang
  • Application: Electronic, Instrument
  • Phase: Single
  • Usage: Protection
  • Installation: Active Type
  • Voltage Transformation Principle: Electromagnetic Type
  • Rated Secondary Current: 5A
  • Secondary Load Power Factor: 0.8(Delay)
  • Trademark: PEOPLE
  • Specification: CCC
  • HS Code: 850431100

Application
LM-0,5 series indoor current transformer, it's used in the circuit, 50Hz, rated voltage 500V. For measurement of instruments, meter or relay protection, control device to transport signal, and measure, protect & control device to isolate from high voltage.

Normal working & installment conditions
1.Temperature: -5ºC~+40ºC
2. Humidity: ≤80%
3. Altitude: ≤1000m
4. Mounting place: indoor place without metal dust or obvious shock

Specification

Rated voltage 500V
Rated frequency 50Hz
Rated primary current 10A, 12.5A, 15A, 20A, 25A,..,3000A
Rated secondary current 5A
Secondary load power factor 0.8 (delay)
Rated output 2.5VA, 5VA, 10VA,
Accuracy 0.5
Isolation resistance isolation resistance of primary winding to secondary winding and to earth ≥20MΩ
Power frequency withstand voltage Withstand valid value of primary winding to secondary winding and to earth ≥ 3kV

Indoor LM-0.5 Ring Type Current Transformer , 600/5A Power Miniature Current TransformerIndoor LM-0.5 Ring Type Current Transformer , 600/5A Power Miniature Current TransformerIndoor LM-0.5 Ring Type Current Transformer , 600/5A Power Miniature Current TransformerIndoor LM-0.5 Ring Type Current Transformer , 600/5A Power Miniature Current TransformerIndoor LM-0.5 Ring Type Current Transformer , 600/5A Power Miniature Current Transformer
